Cardboard Reaction Wheel Balancing Cube

When presented with a coursework brief to make a mechatronics project out of cardboard, I initially thought the cardboard restriction was very limiting. However, after some brainstorming, I realized that some systems might actually benefit from the structural properties of cardboard (stiff, very lightweight). I settled on attempting to make a cardboard balancing cube.

This project was incredibly satisfying for me, as I didn't know whether it was possible right up until the end. Watching everything come together after pushing through many many hours of prototyping, simulation, control design and tuning was very exciting; I was defiantly riding the edge of what was possible with the hardware I had.

// Submission Video

A final video produced as part of the assignment

// Technical Details

More details are contained in a presentation poster I made for the submission:

// Other Media

Youtube playlist containing various clips

an image lol

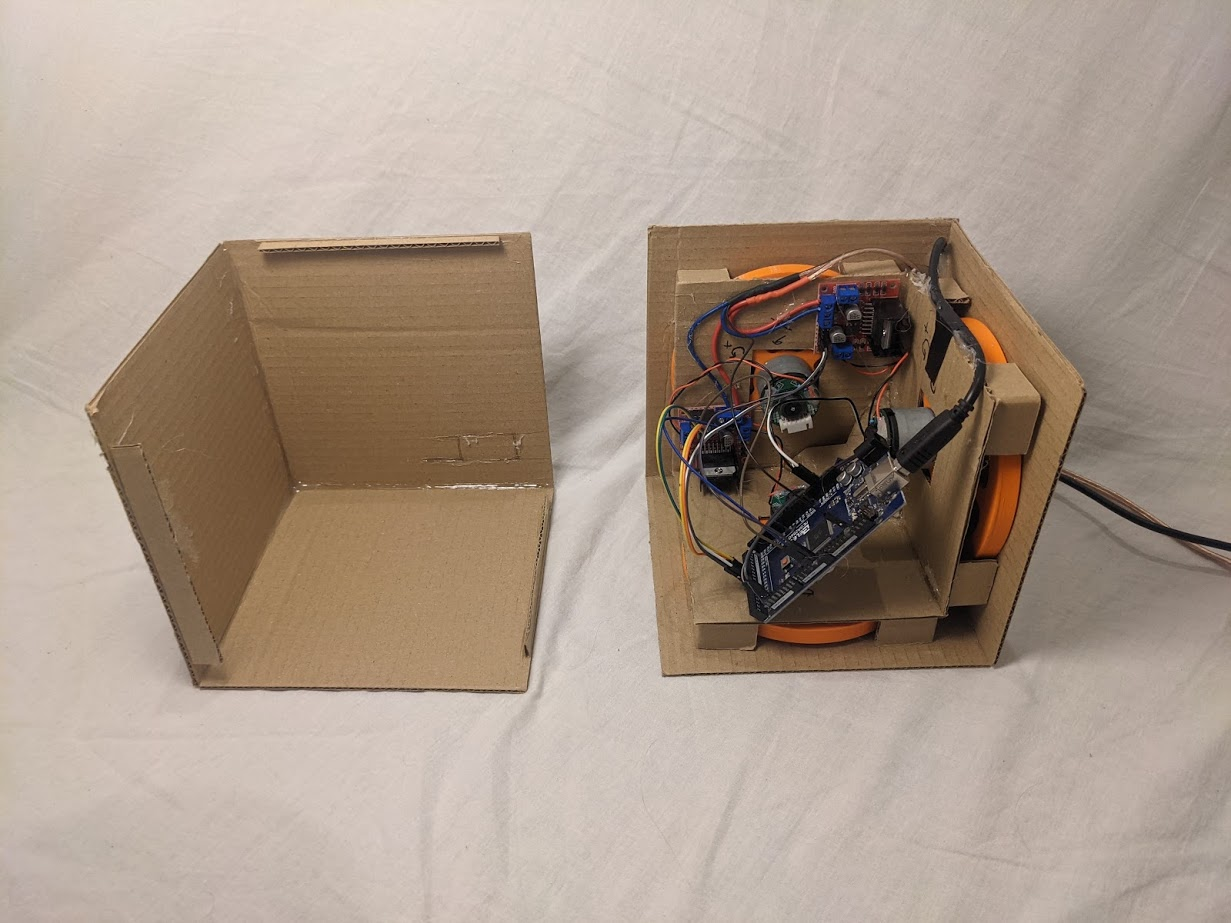

The internals, all scavenged from other projects

an image lol

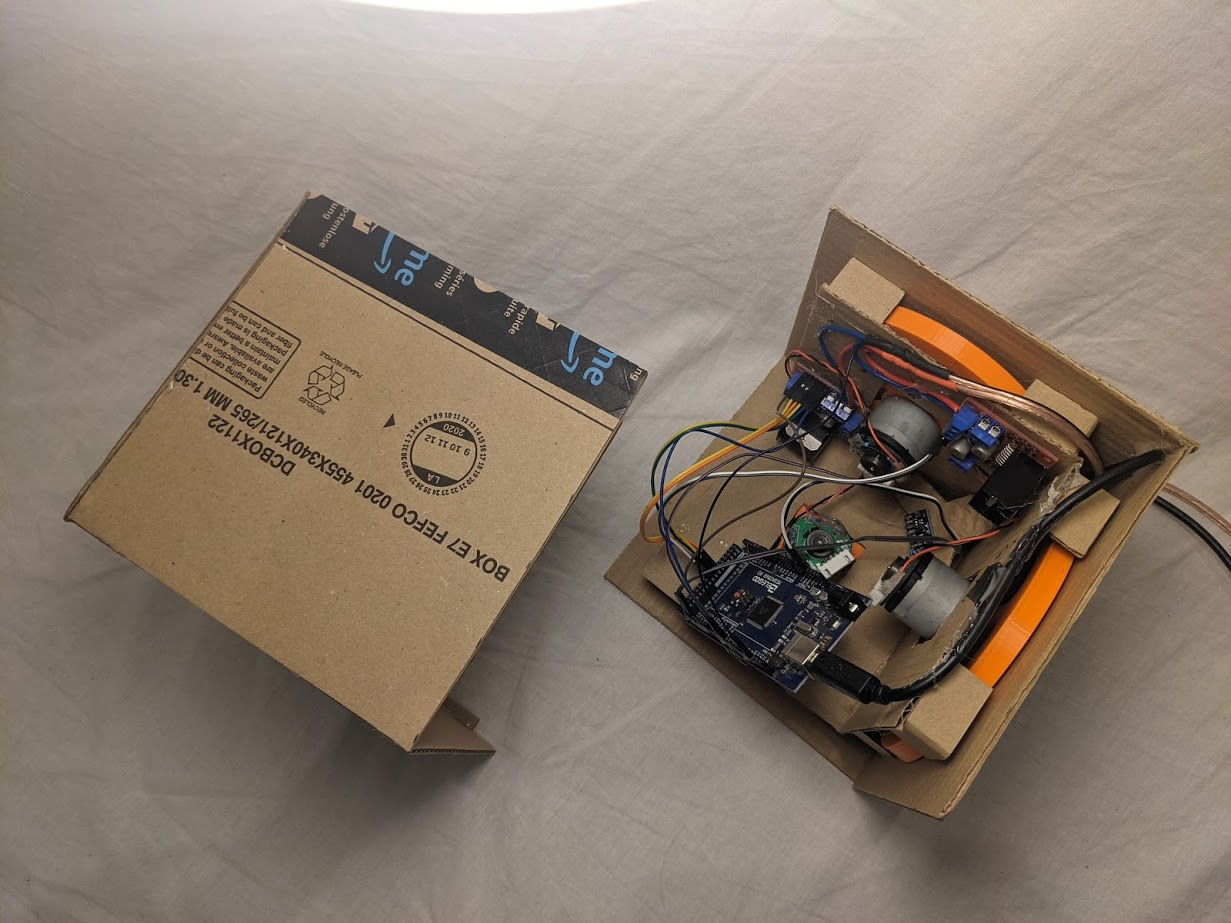

Another view of the internals

an image lol

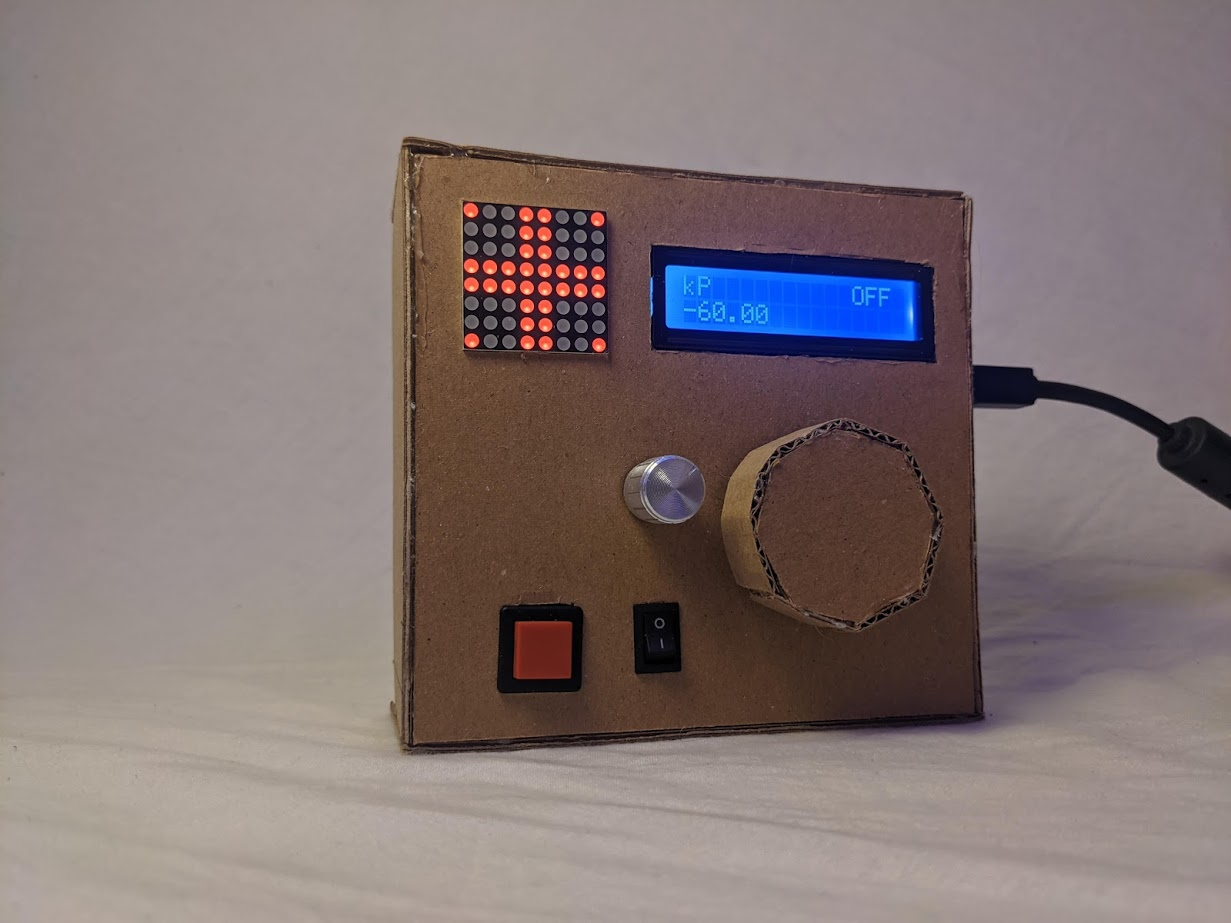

The "tuning" station

an image lol

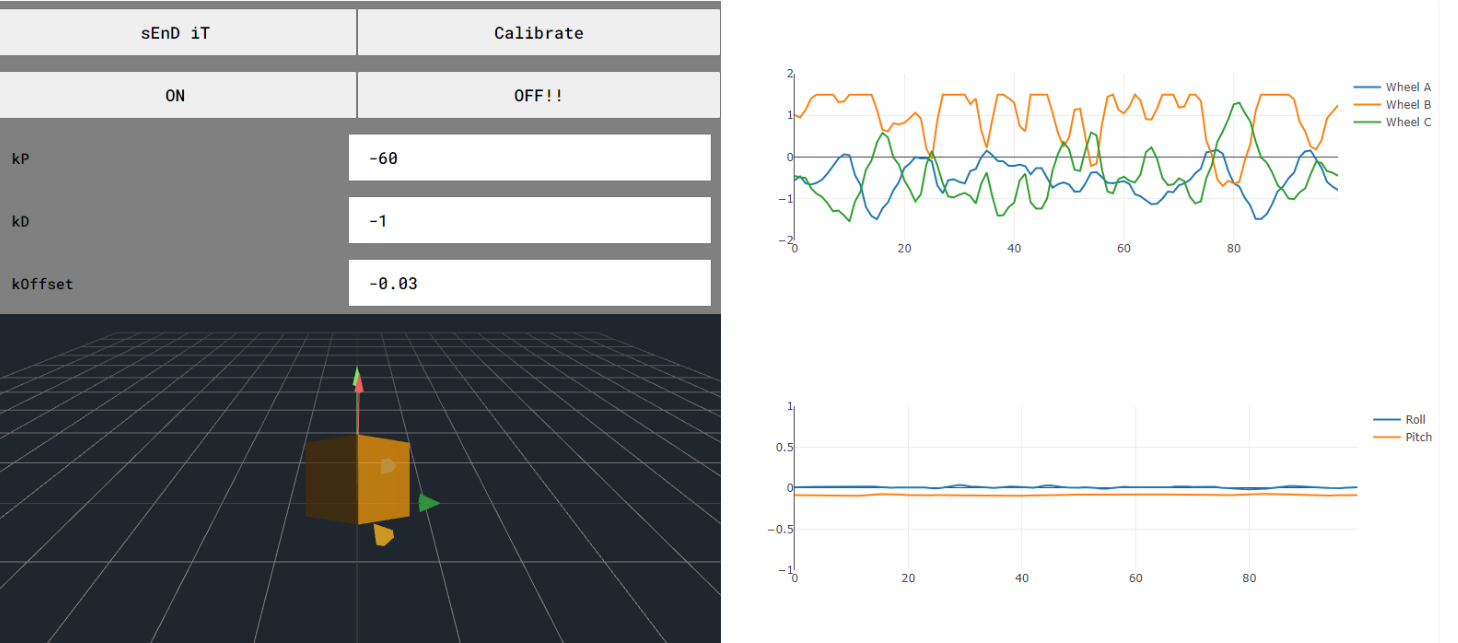

Screenshot of the interface / viz software

an image lol

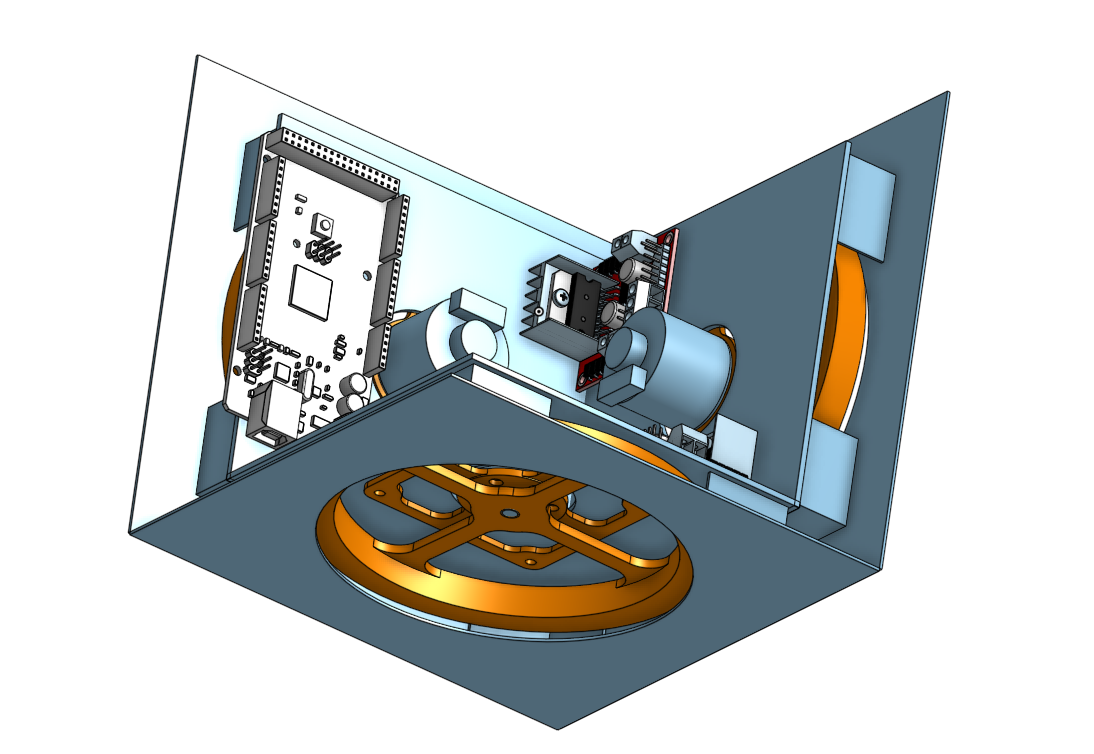

Rough CAD (done in onshape)
